Relic Weapon Parts – Part 3 – Vickers MG

The Vickers machine gun is a water-cooled .303 British machine gun produced by Vickers Limited, originally for the British Army. The machine gun typically required a six to eight-man team to operate: one fired, one fed the ammunition, the rest helped to carry the weapon, tripod, its ammunition, and spare parts. It was in service from before the First World War until the 1960s, with air-cooled versions of it on many Allied World War I fighter aircraft. The weapon had a reputation for great solidity and reliability. In one action that took place in August 1916, during which the British 100th Company of the Machine Gun Corps fired their ten Vickers guns continuously for twelve hours. Using 100 barrels, they fired a million rounds without a failure.

The Vickers machine gun was based on the successful Maxim gun. After purchasing the Maxim company outright in 1896, Vickers took the design of the Maxim gun and improved it, inverting the mechanism as well as reducing its weight by lightening and simplifying the action and using high strength alloys for certain components. A muzzle booster was also added.

The British Army formally adopted the Vickers gun as its standard machine gun on 26 November 1912, using it alongside their Maxims. There were still great shortages when the First World War began, and the British Expeditionary Force was still equipped with Maxims when sent to France in 1914. Vickers was, in fact, threatened with prosecution for war profiteering, due to the exorbitant price it was demanding for each gun. As a result, the price was slashed. As the war progressed, and numbers increased, it became the British Army’s primary machine gun, and served on all fronts during the conflict. When the Lewis Gun was adopted as a light machine gun and issued to infantry units, the Vickers guns were redefined as heavy machine guns, withdrawn from infantry units, and grouped in the hands of the new Machine Gun Corps. After the First World War, the Machine Gun Corps (MGC) was disbanded and the Vickers returned to infantry units. Before the Second World War, there were plans to replace the Vickers gun, however, the Vickers remained in service with the British Army until 30 March 1968. Its last operational use was in the Aden Emergency.

The number of parts to this weapon, along with all the spare parts, tripod, special mounts, aiming gear…..the list goes on, means that there are plenty of opportunities to find parts of the weapon, if you know where to look. The British army dump permission of mine has yielded a great many Vickers MG parts over the years, some immediately identifiable, others needed a bit more digging, (pardon the pun!). It is also quite easy to overlook a small piece of rusty metal, thinking it is just rubbish, when in actual fact it is an integral part to the Vickers mechanism.

I have recovered and preserved numerous pieces from the weapon and tripod, as well as other ancillary items. When I display at military shows, I can devote a whole table just to the Vickers MG.

DSC_4132
Parts from Vickers tripod
DSC_4140
Elevation wheel from Vickers tripod

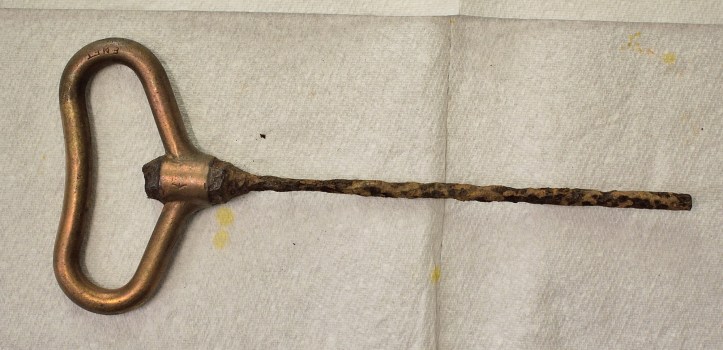

DSC_4134
Remains of a Vickers cleaning rod. The steel has rusted away, but the brass handle remains intact and is even stamped with a WD arrow
DSC_4143
Muzzle protector, Mk 1

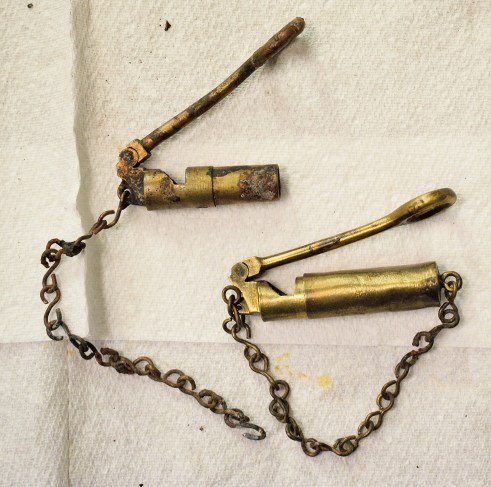

DSC_4149
Bore mirrors. The cap was removed and the mirror placed in the breech end of the barrel. The angled mirror then enables the viewing of the entire length of the barrel safely!

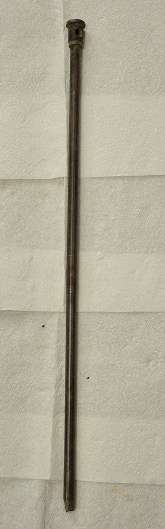

DSC_4137
Steam pipe from inside the water jacket of a Vickers MG
DSC_4139
Steam pipe acorn
DSC_4141
Adapters for fitting the condenser pipe to the jacket of a Vickers
DSC_4138
This is a strange little item, and one that could easily have been thrown away. However, it is actually the collar from the ‘Peg, Night line, MG, Mk 1’ set used with the Vickers MG
DSC_4144
Spouts from the Mk 2 half-pint oil can for the Vickers

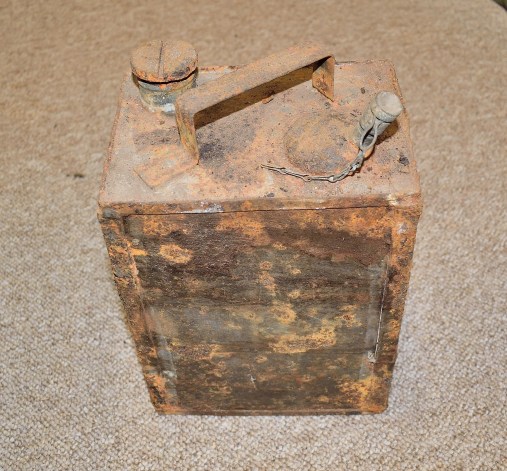

DSC_4158
2 gallon oil can

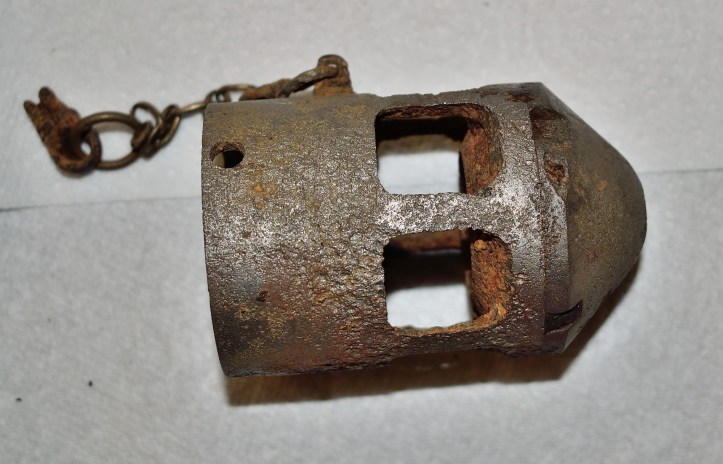

DSC_4146
Muzzle booster, with the official title of ‘Muzzle, Attachment, Ball, Mk 1’

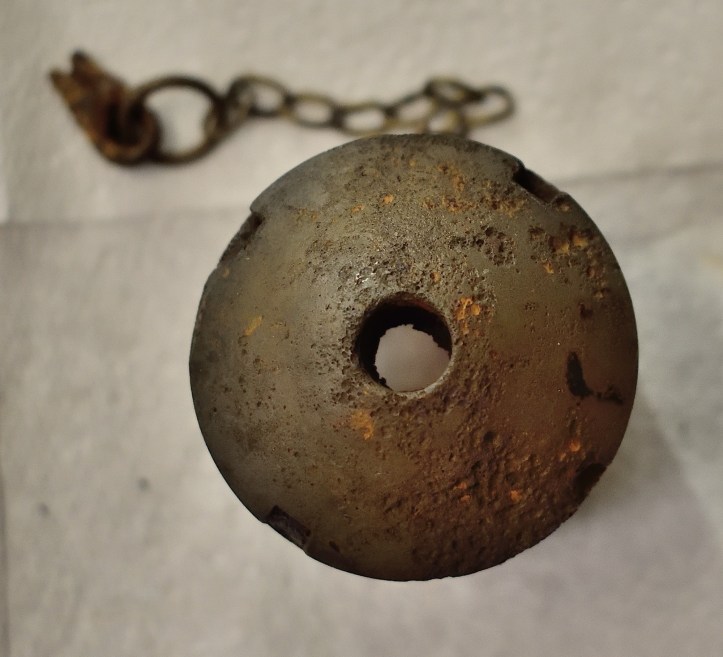

DSC_4148
Front view of the muzzle booster
DSC_4145
Another great name for this item…. ‘Head, plug, Screwed’ . In other words, the ‘stopper’ for the water jacket

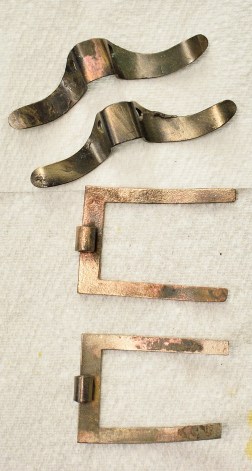

DSC_4147
Feedblock pieces…..top are two bottom pawl springs, bottom are two top pawl springs.

Many of the parts above were found in areas of the dump that hadn’t been burnt. However, the majority of the dump was burnt, over and over again, and the fuel for these fires, (set to try and render the stuff in the dump unusable), was invriably the equipment itself.

One prime example of this is the cloth belts from the Vickers MG. It is quite common to find a ‘seam’ of cloth belt metal parts, in among and area that has obviously been burnt. The cloth itself was used as the fuel, with the metal parts left behind to be recovered and preserved!

DSC_4153
Vickers cloth MG belt starter tabs, 3 different variants
DSC_4156
.50cal Vickers cloth belt starter tabs and brass strips
DSC_4155
Just a few Vickers cloth belt starter tabs and brass strips
DSC_4152
If you are really lucky, the starter tabs have been unit marked, as with all these examples.

Other items burnt in these fires had wooden parts, again to act as the fuel. One example is shown below.

DSC_4151
This would have originally had a wooden handle and is a cloth belt repair and stretching tool, used with the Vickers



The last part of this mini series of blogs will cover lots of different weapons, including German ones, found in the UK!
