British, American and German Grenades of WW2

Following on from my previous blogs about markings on artillery shells, cartridge headstamps, aerial bomb fuzes and pistols……and quite a few more…..this blog is dedicated to grenades of WW2. Specifically British, American and German. Once more, I’ve collected all my ‘local’ information together and posted it on this one page, for ease of browsing!

There were far fewer types of hand grenade used during WW2 than in WW1, but even so, the variety of grenades used during the conflict is still quite broad.

The British and Americans had a similar breadth of grenade types, utilising them as not only offensive and defensive anti-personnel devices, but also for specific functions like smoke production or as anti-tank ordnance. The use of launcher devices enabled some types of hand grenade to be used as rifle grenades, with a much greater range, but while still using a standard grenade type. This meant production could concentrate on a few types, allowing for greater production volumes than if there were multiple types. However, it lead to limitations on the battlefield, with one or two grenade types being used for multiple roles, some of which they weren’t suited to or particularly effective at.

This is where the German grenade design and utilisation in combat varies considerably to the Allied designs and uses. German rifle grenades came in a multitude of different designs, all with specific functions and uses on the battlefield. This gave the German soldier a much wider range of options when faced with specific battlefield situations. The German designers also came up with anti-tank grenades that were more effective than the Allied equivalents.

I have collected together detailed information on WW2 grenades, and posted the documents here as a single page reference source. I hope you find it useful.



BRITISH GRENADES

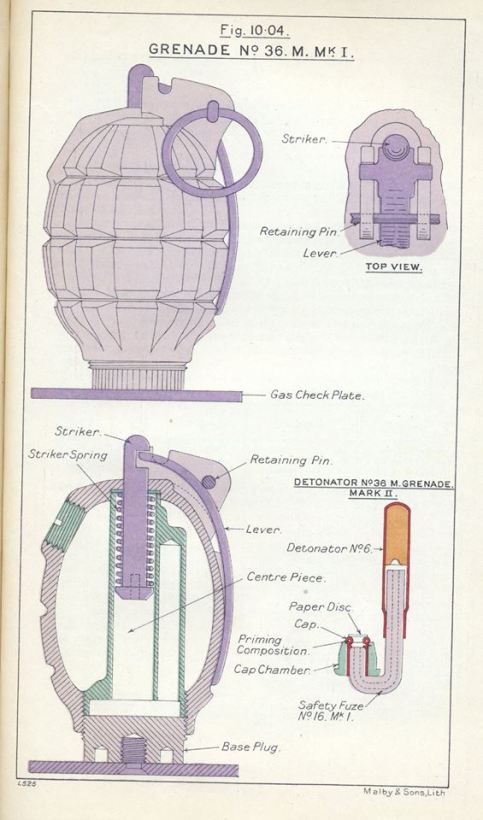

11137160_1009870365703562_718757871596762256_n



Grenade 27

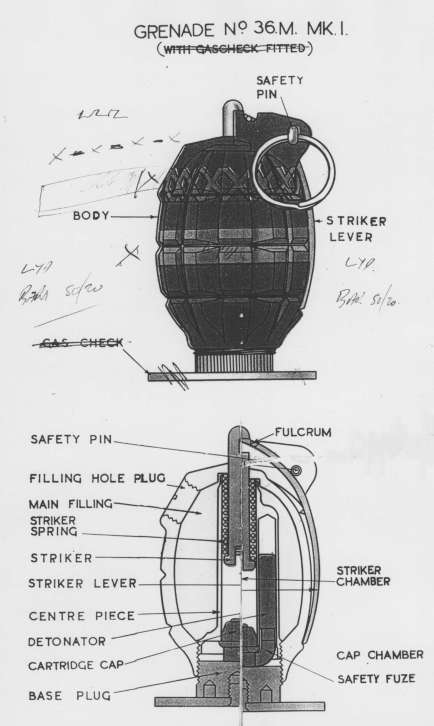

mills



Grenade 1

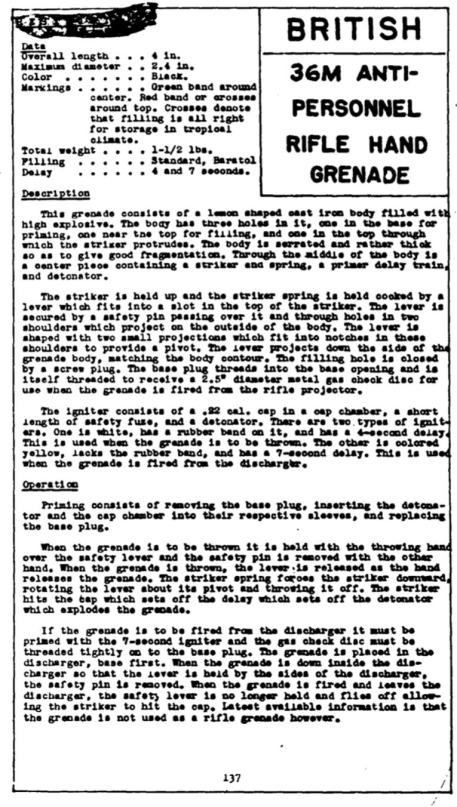

Grenade 2

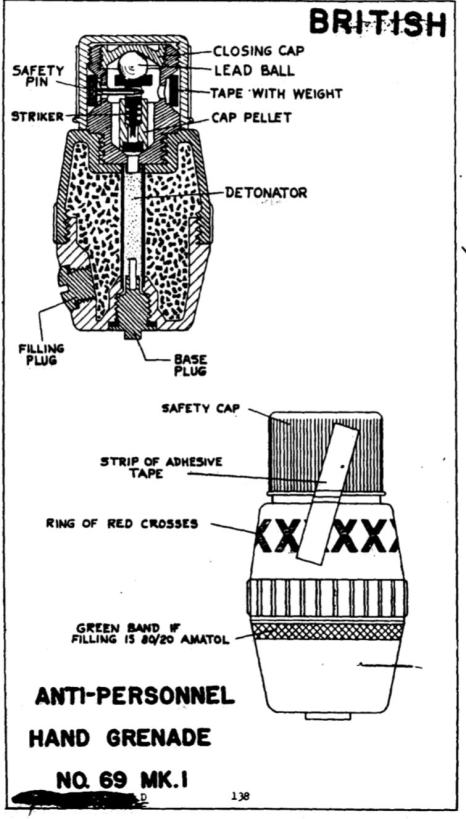

Grenade 3

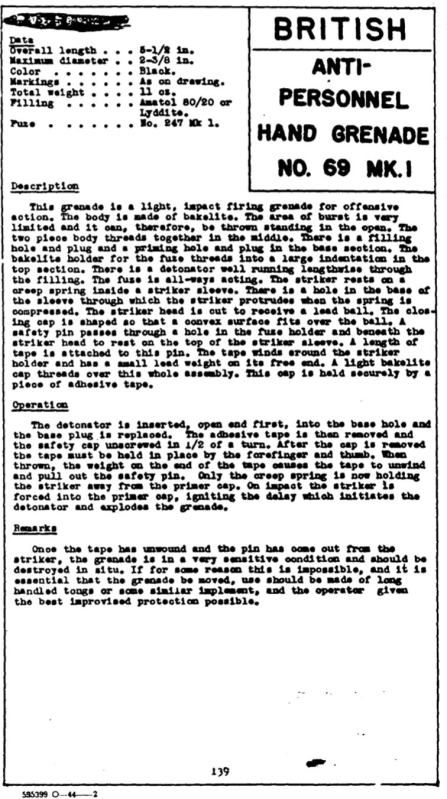

Grenade 4

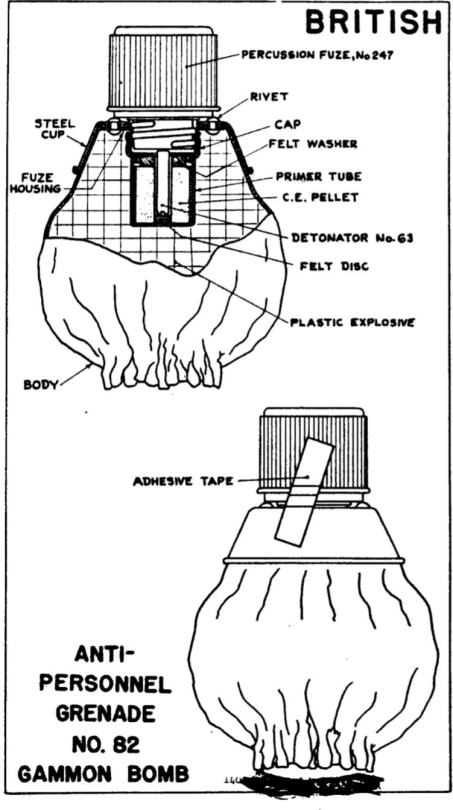

Grenade 5

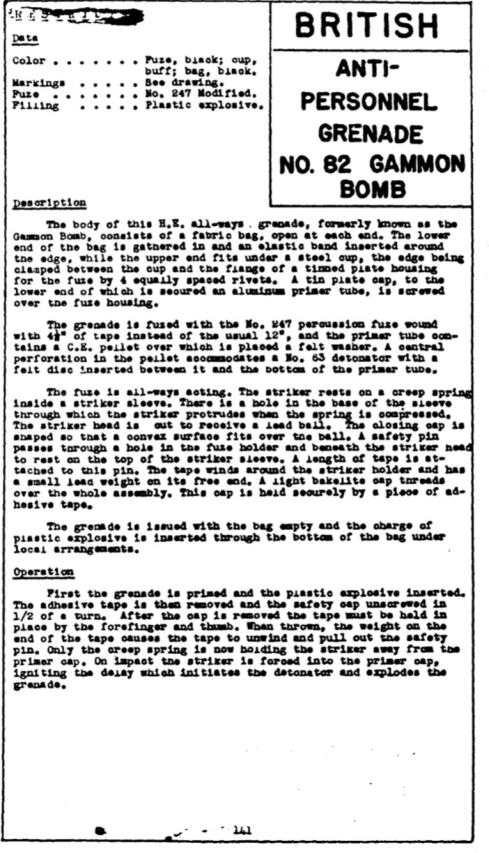

Grenade 6



Grenade 7

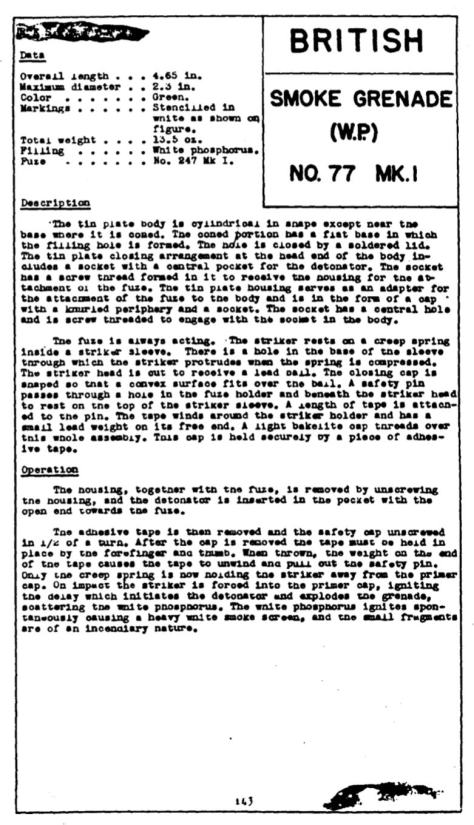

Grenade 8

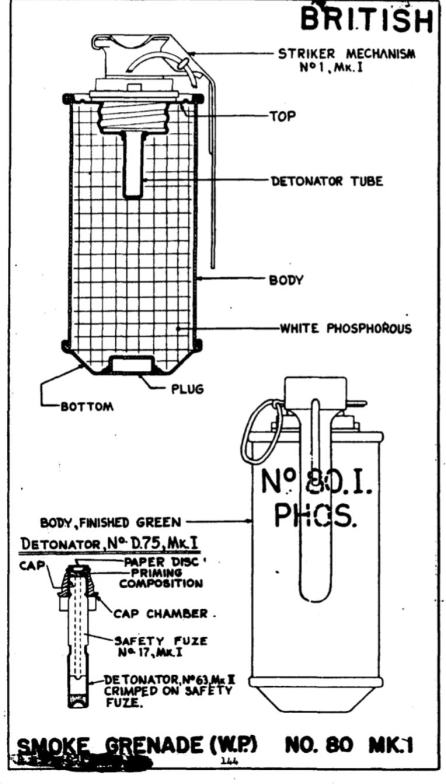

Grenade 9

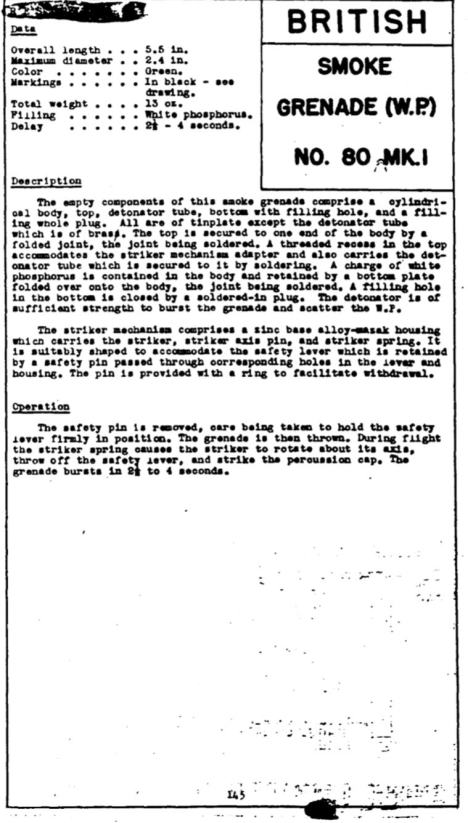

Grenade 10



Grenade 11



Grenade 12



Grenade 13

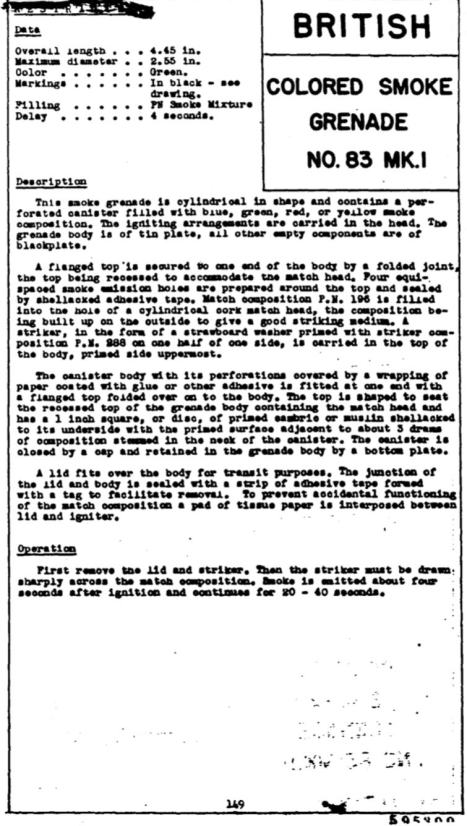

Grenade 14

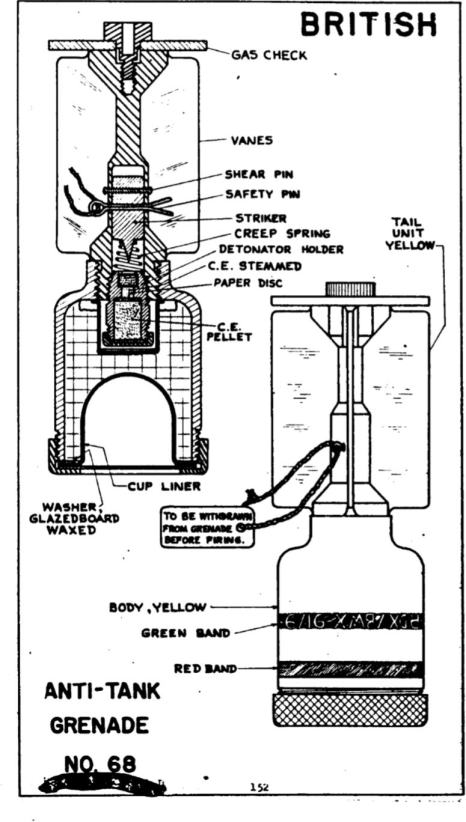

Grenade 15



Grenade 16



Grenade 17



Grenade 18

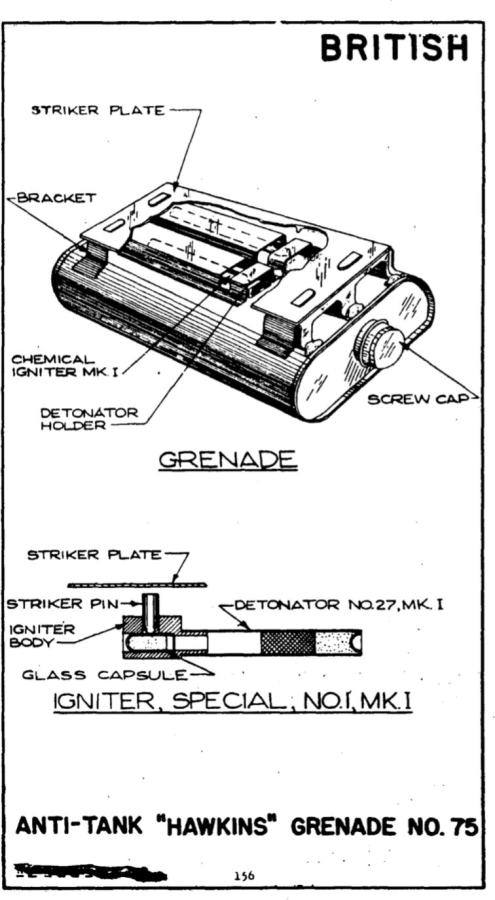

Grenade 19



Grenade 20

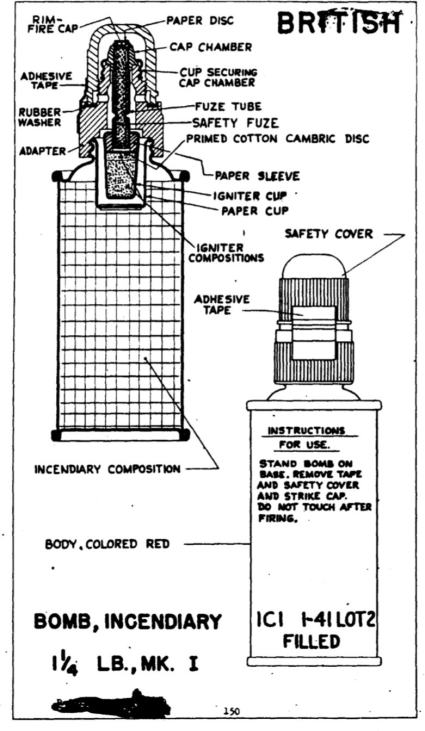

Grenade 21



Grenade 22



Grenade 23

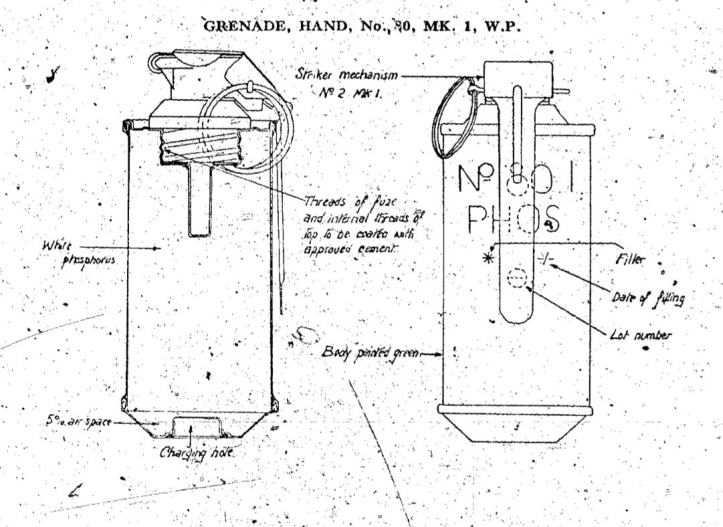

Grenade 24

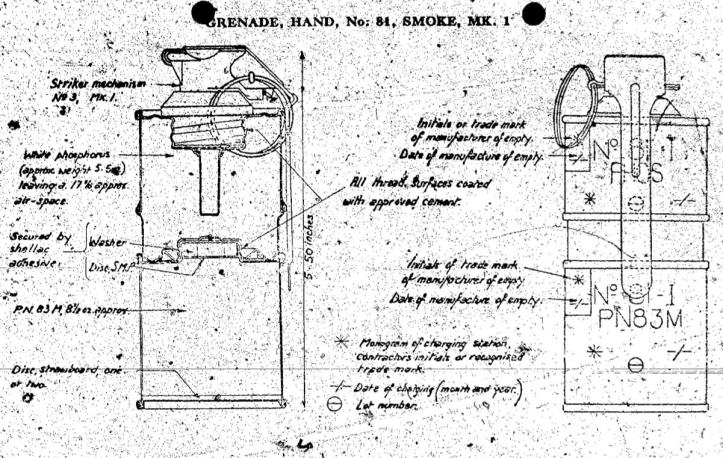

Grenade 25

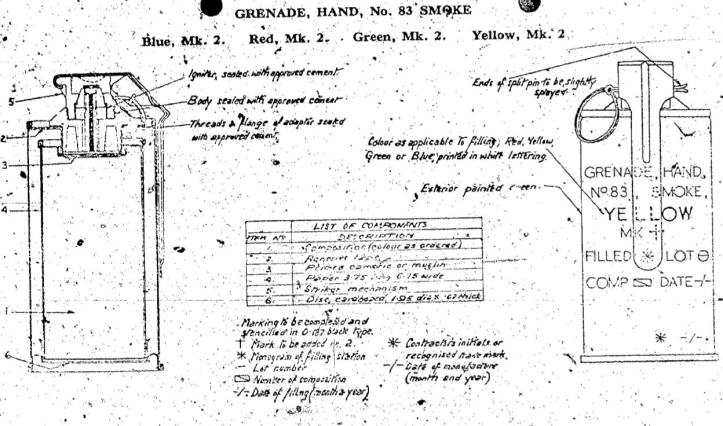

Grenade 26



AMERICAN GRENADES



pg301



pg302



pg303

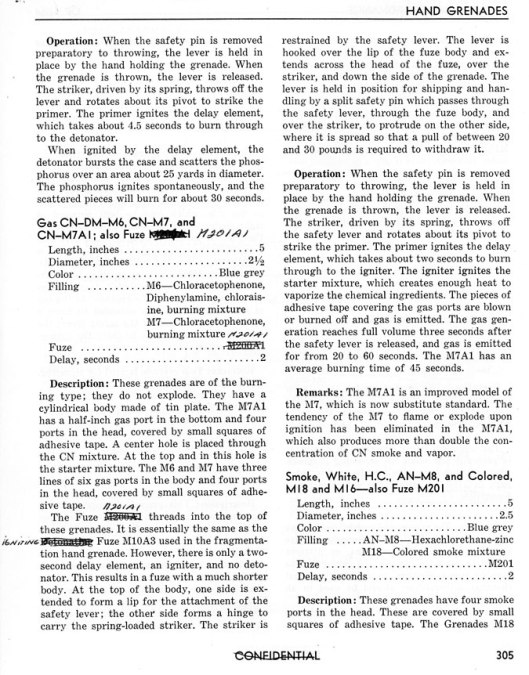

pg305

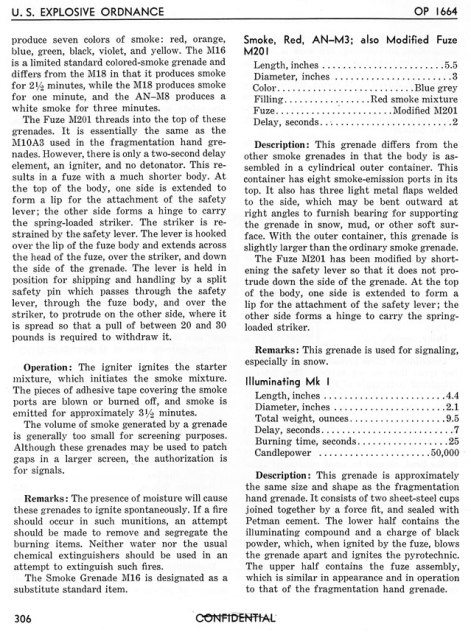

pg306



pg307

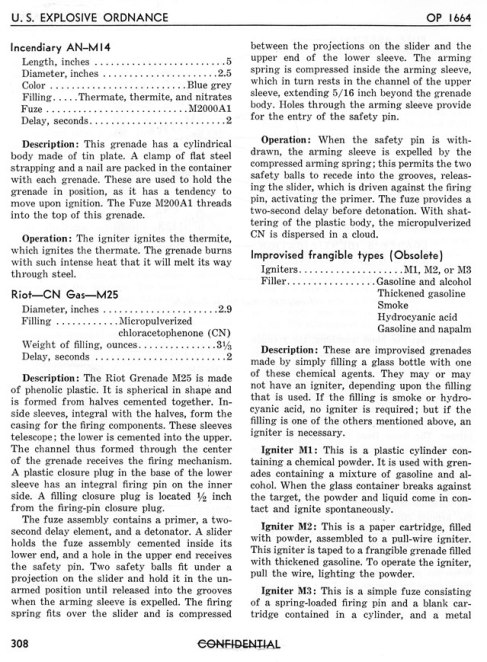

pg308

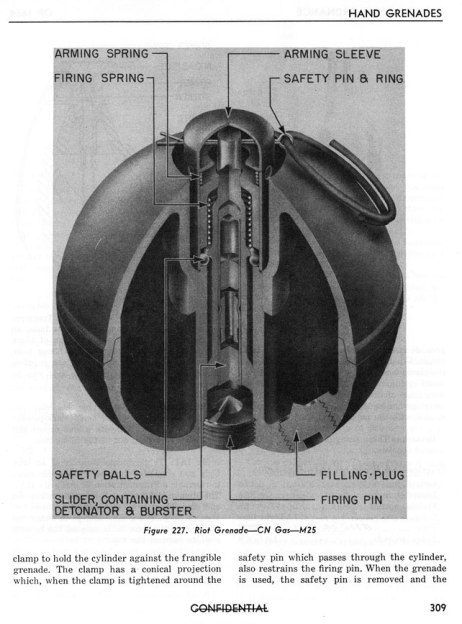

pg309





pg311

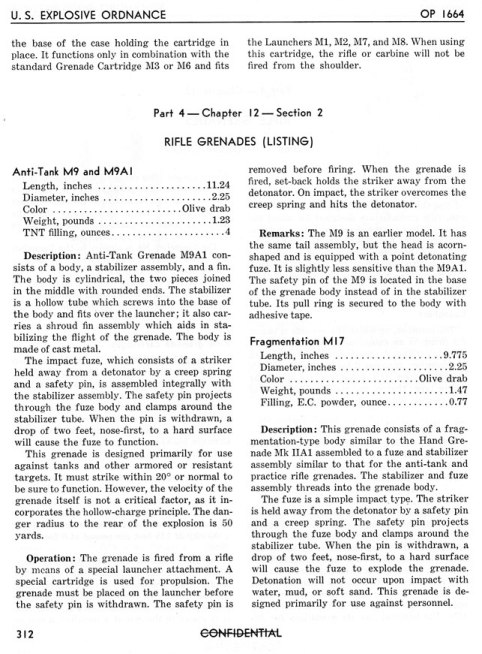

pg312

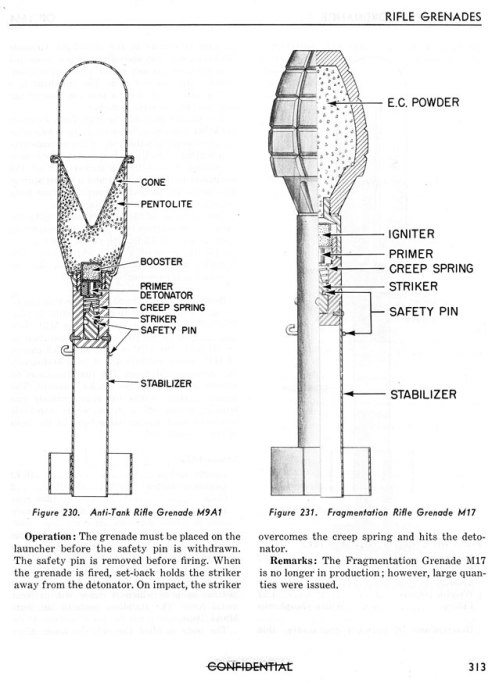

pg313

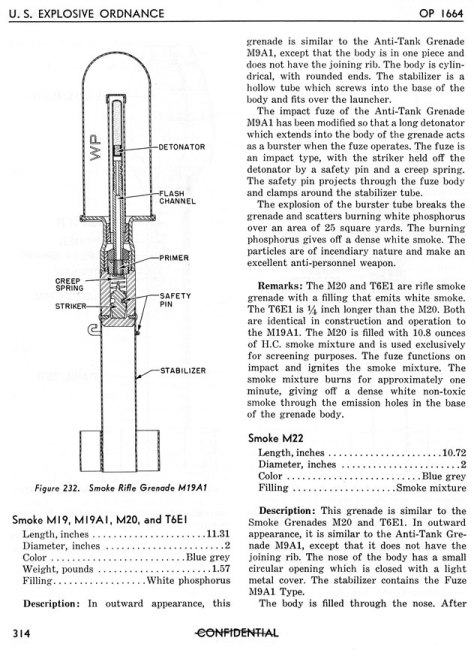

pg314



pg315



pg316

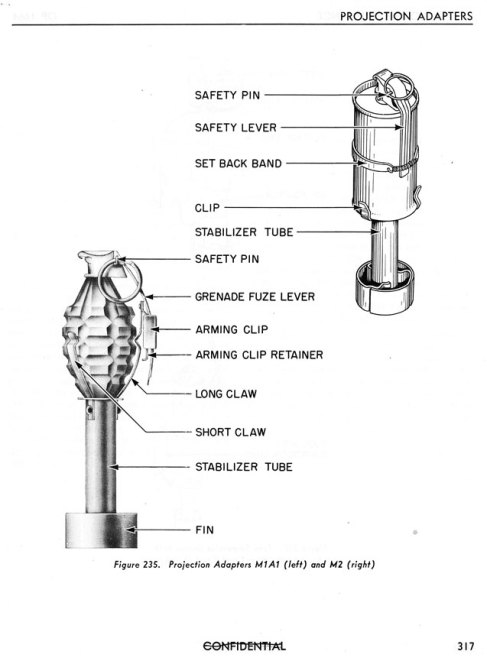

pg317



pg318





Grenade 28



GERMAN GRENADES

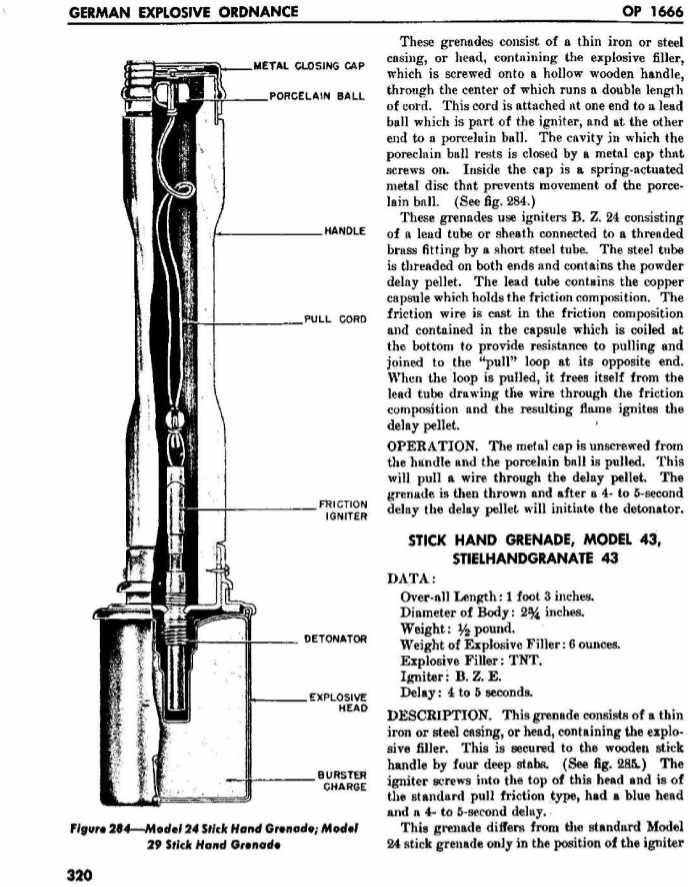

German 1

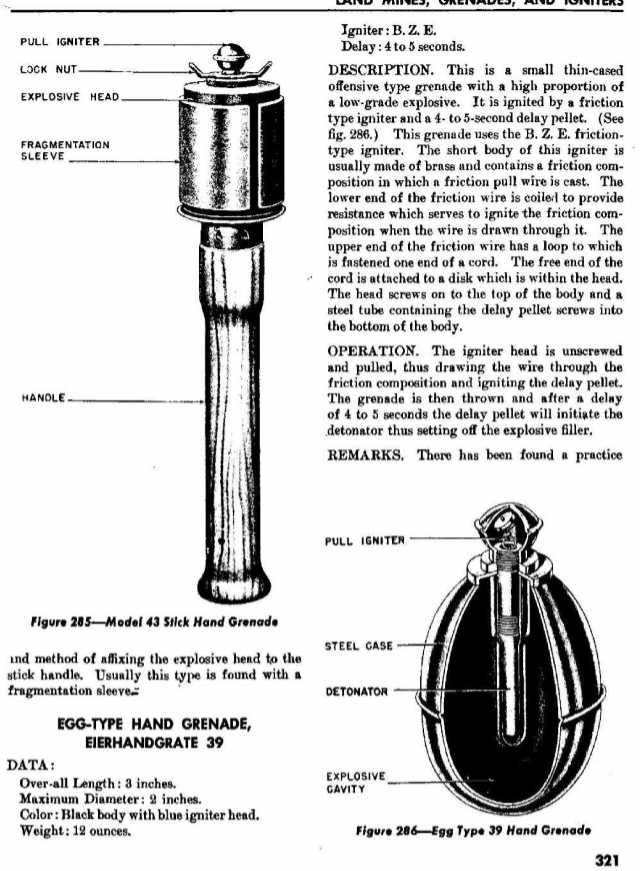

German 2





German 4



German 5

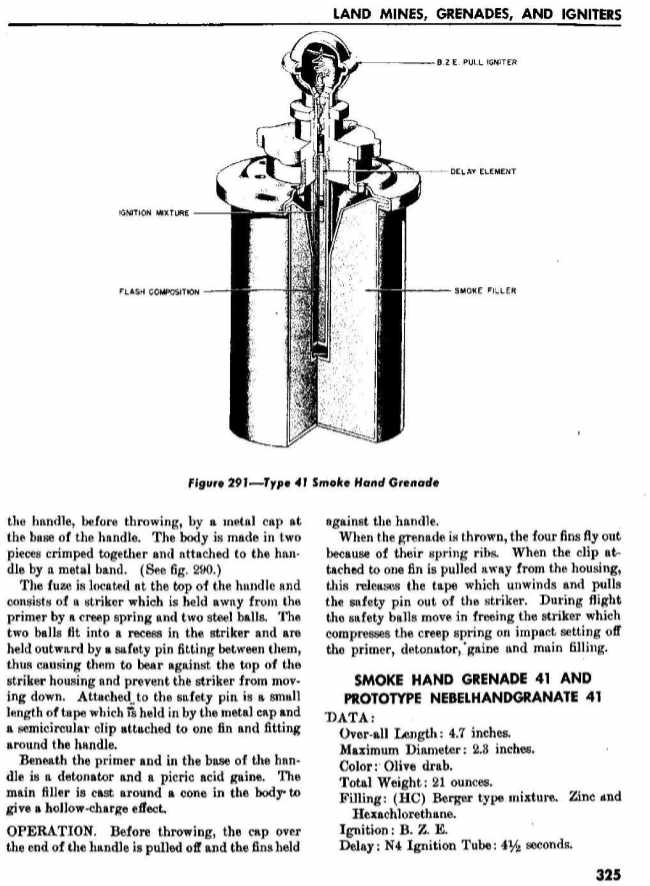

German 6

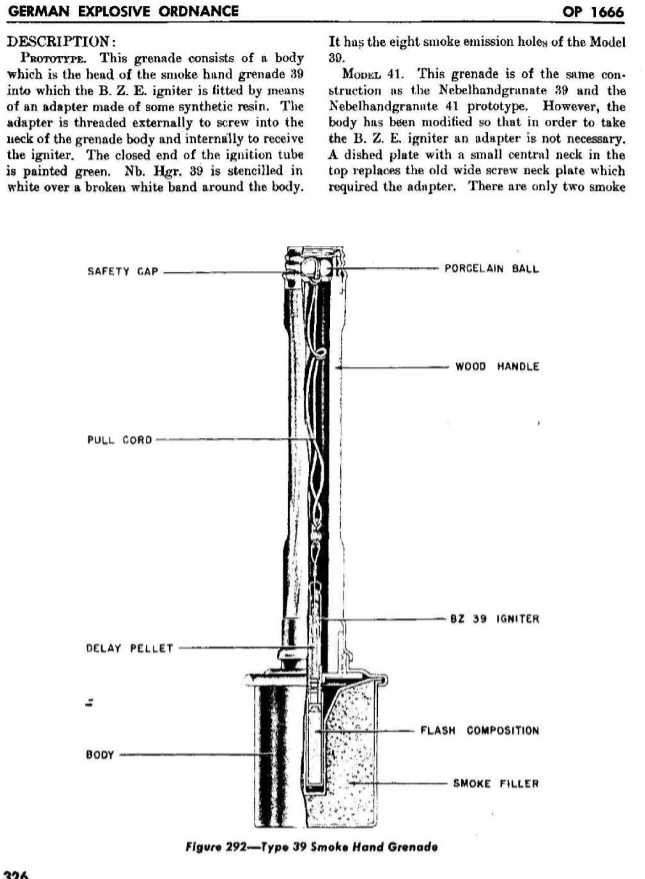

German 7

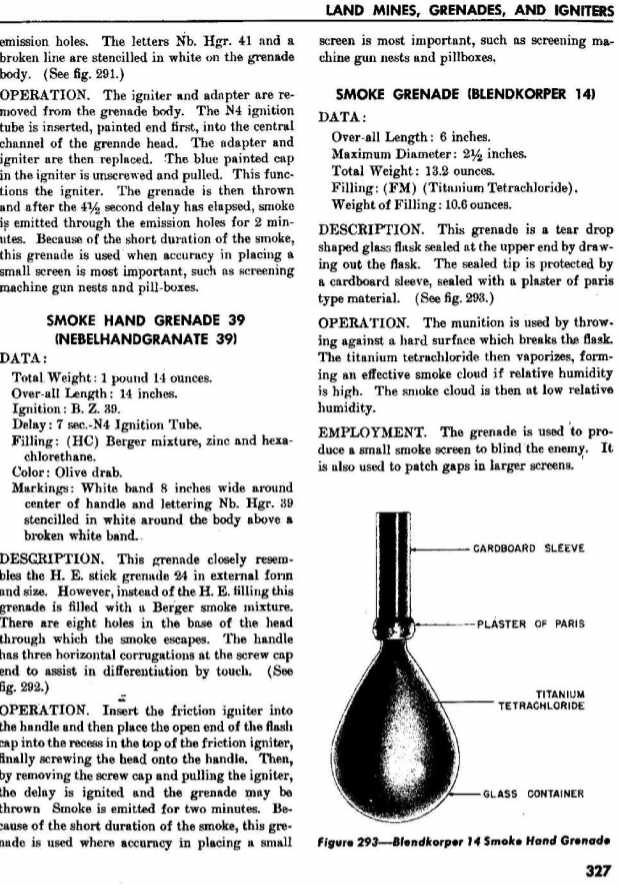

German 8

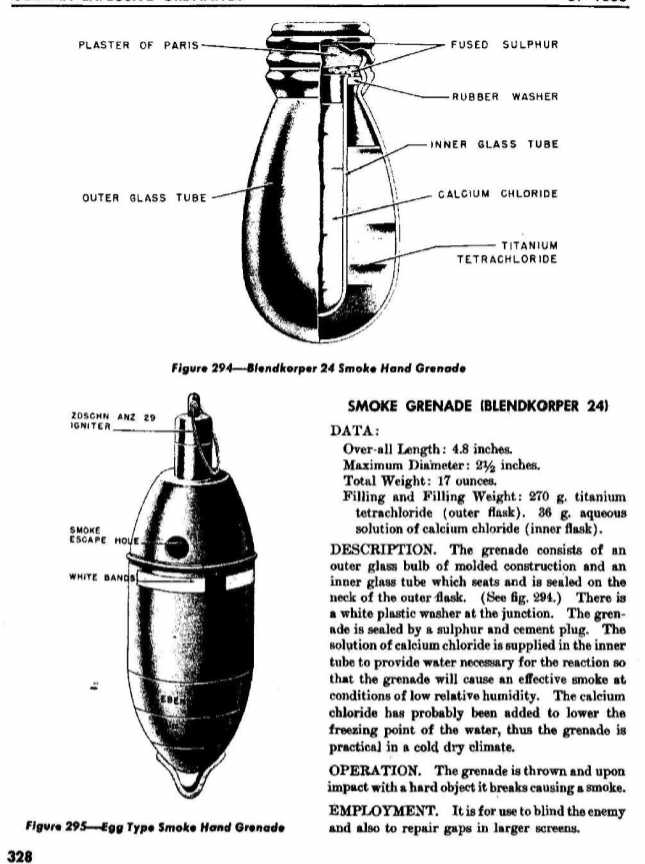

German 9



German 10



German 11

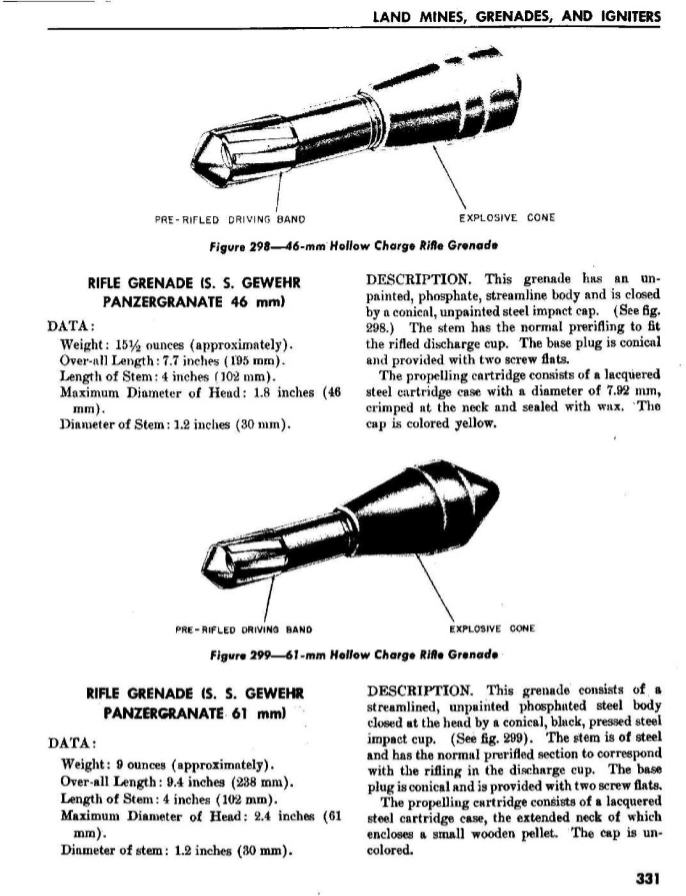

German 12

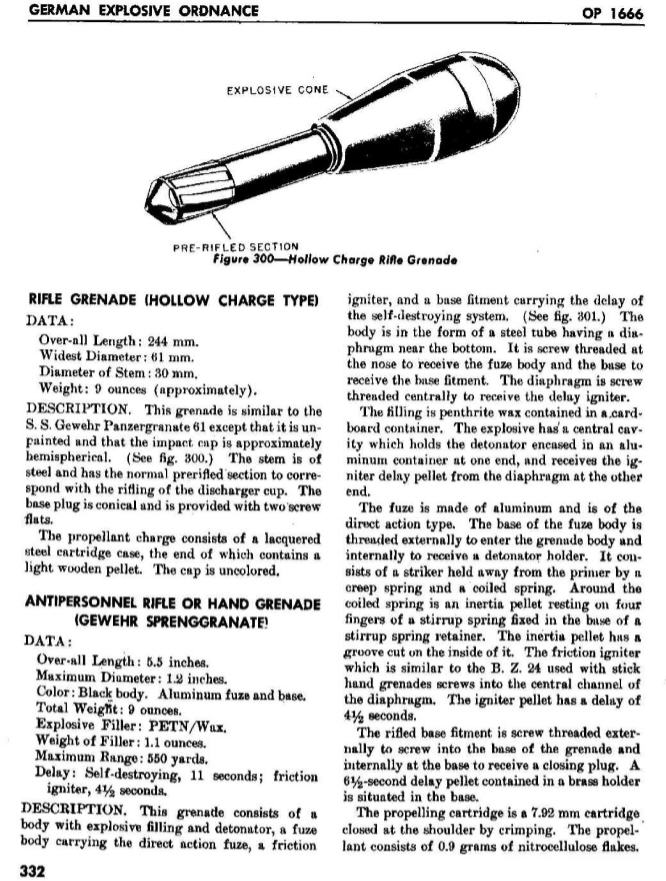

German 13



German 14

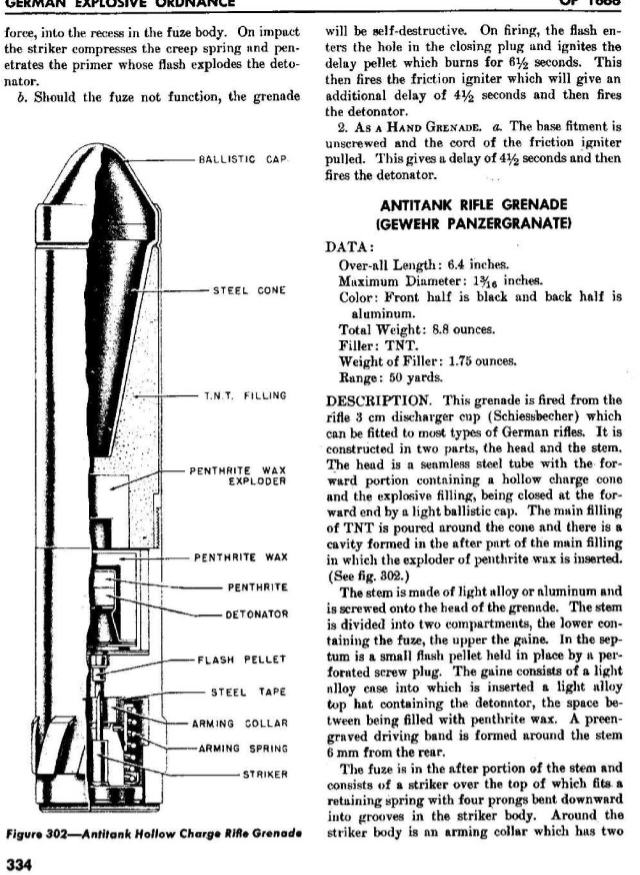

German 15

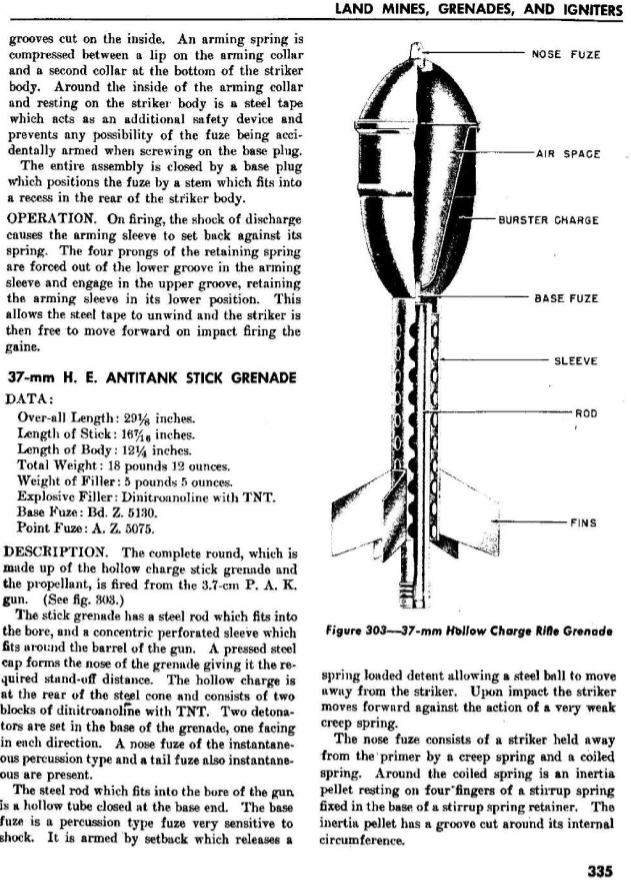

German 16



German 17

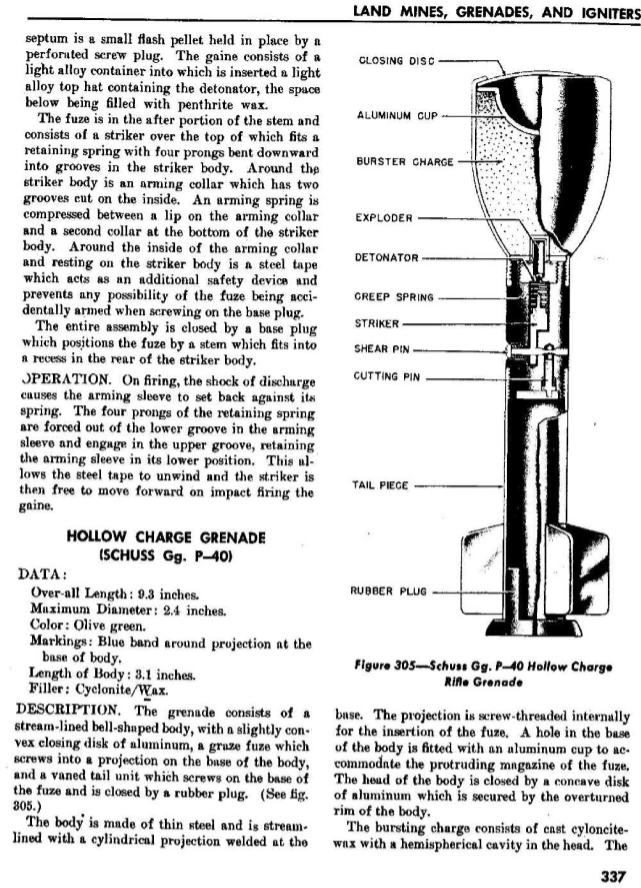

German 18



German 19

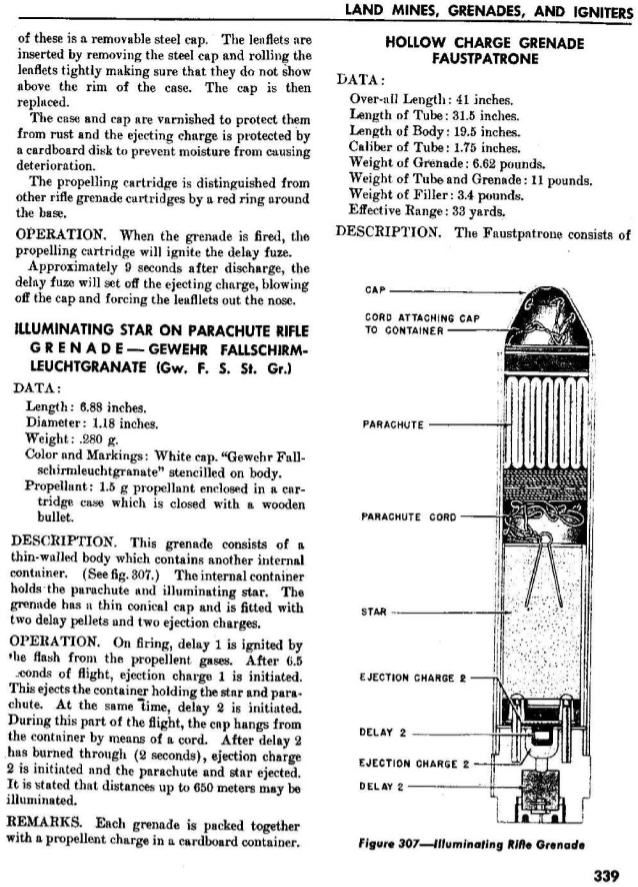

German 20



German 21



German 22



German 23



German 24

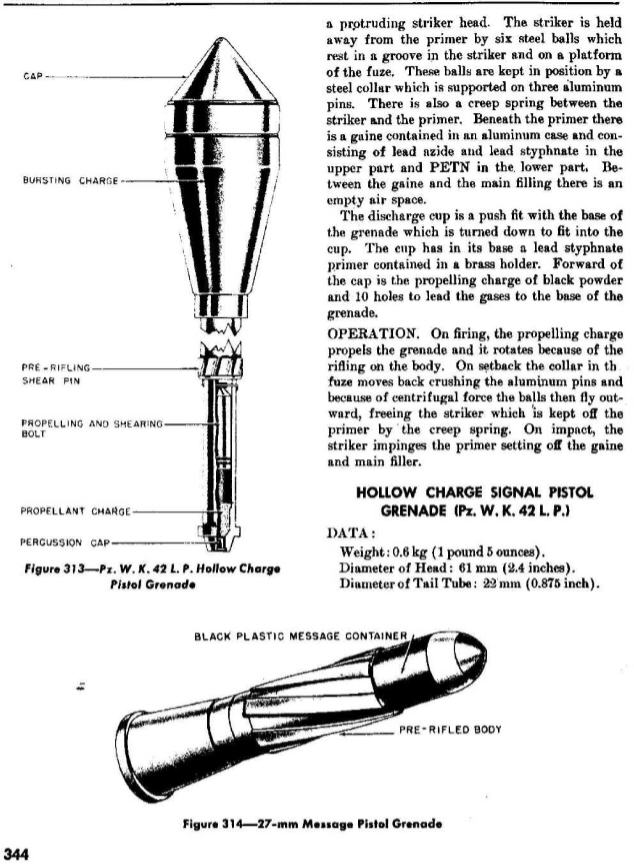

German 25



German 26

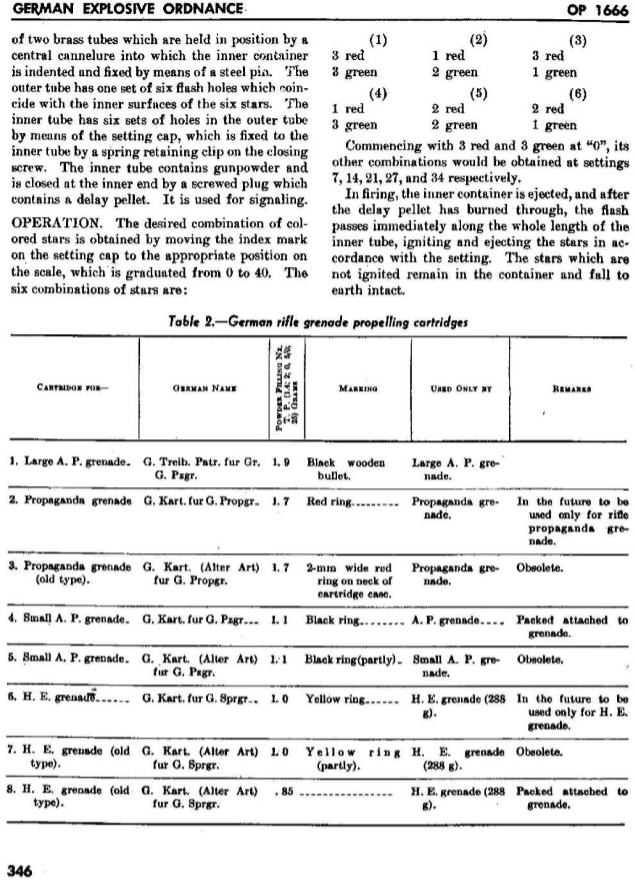

German 27



DSC_4344

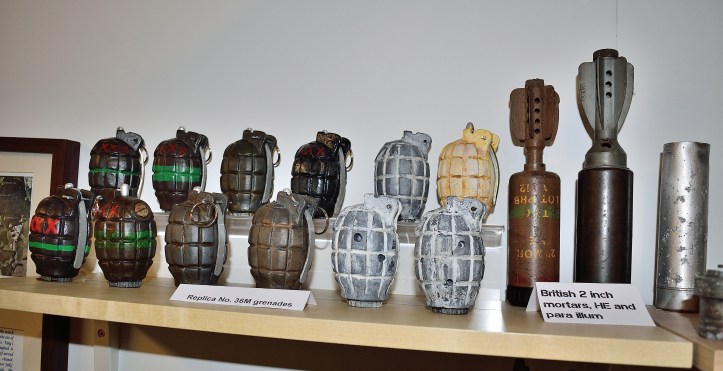

Replica No 36M grenades. I cast a silicone mould from one of my original grenades, then used that mould to make plaster of paris replicas. These were then painted, original WW2 base plugs added, and the arming spoon and central column made from aluminium sheet and rod. Lastly, a split pin and ring were added.
DSC_4346

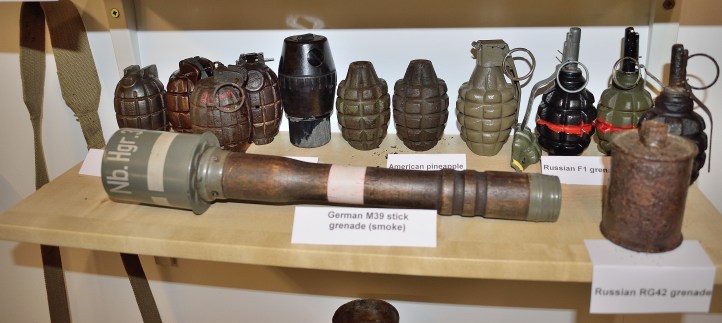

Original grenades in my collection. All are certified Free from Explosive (FFE).
