40mm Bofors, Mine Fuzes, & Much More – Digging An Old RAOC Disposal Pit!

During season one of WW2 Treasure Hunters, the episode ‘The Bomb Factory’ was filmed just outside Loughborough. The land around Garendon House was occupied by No 32 Ammunition Sub-depot and they were responsible for over 30,000 tons of ordnance stored on the site, and on the grass verges of the country lanes surrounding Loughborough.

At the end of the war the RAOC had to recovery all of this ordnance and either put it back into service, send if for recycling, or (for the more unstable items that they had) blow the living daylights out of it in a disposal pit.

WW2 Treasure Hunters covered the story well, but what it didn’t dig down in to was what they were blowing up at the depot. After all, they dealt with everything from small arms ammo to artillery shells, grenades, mines and even incendiary bombs. The finds made around the location of the old disposal pit over the last few years, have given a real insight into what they were disposing of. The location of the pit and the surrounding field is littered with the exploded remains of many a piece of ordnance, and identifying each piece confirms exactly what they were blasting into pieces!

The site was visited by members of the WW2 Relic Retrieval & Preservation Group on the 15th September, then a return visit by just myself on the 21st September. Some of the finds were what we expected to find, having been digging the site for a few years now. 40mm Bofors shell fragments, No 3 fuzes from Mk V anti-tank mines and incendiary bomb tile breakers are all common finds at the site. But some of the finds have added to the story, with evidence of other bits of ordnance being blown to hell and back in the quiet country estate!

First off, the finds made by the group members from the first dig…..

20190915_143221
Bases from 40mm Bofors shells, No 3 mine fuzes, 40mm nose fuze, Spigot mortar drill round, protector for the base of an artillery shell, trip plate from a Mk 2 shrapnel mine
20190915_143347

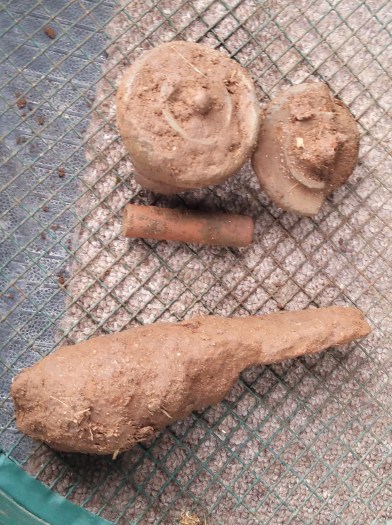

No 3 fuzes from Mk V anti-tank mine, 40mm HE shell, 40mm booster tuber
20190915_143435

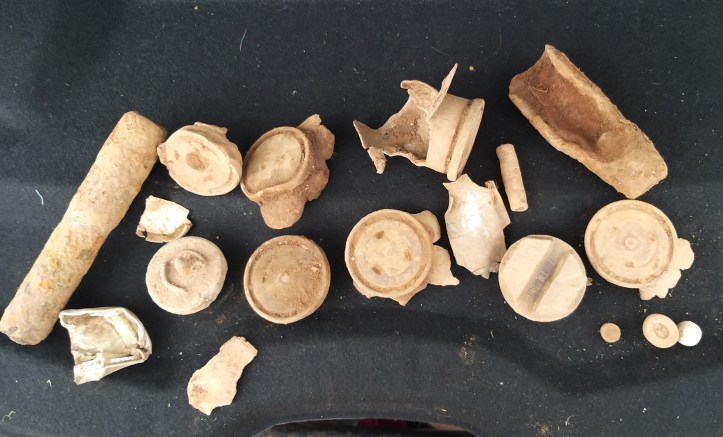

More 40mm and No 3 fuzes along with a trasport cap from a 25pdr

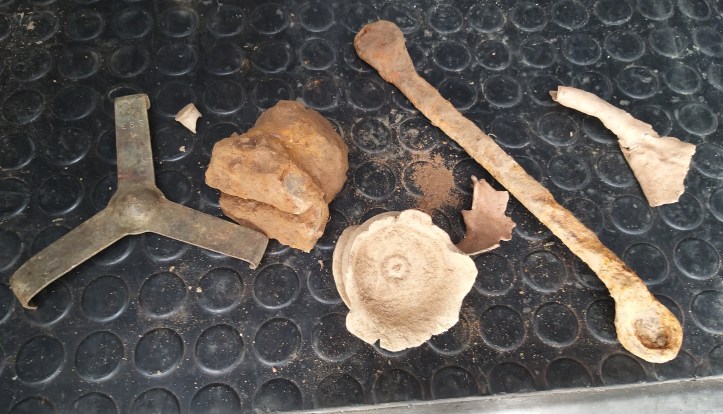

20190915_143453
Artillery shell base protector, 40mm, transport cap and a spanner (probs not WW2 but who knows!)
20190915_111117
40mm base just coming out of the ground. Spotted it?



20190915_111217
Freshly dug…..and nicely dated
DSC_0853

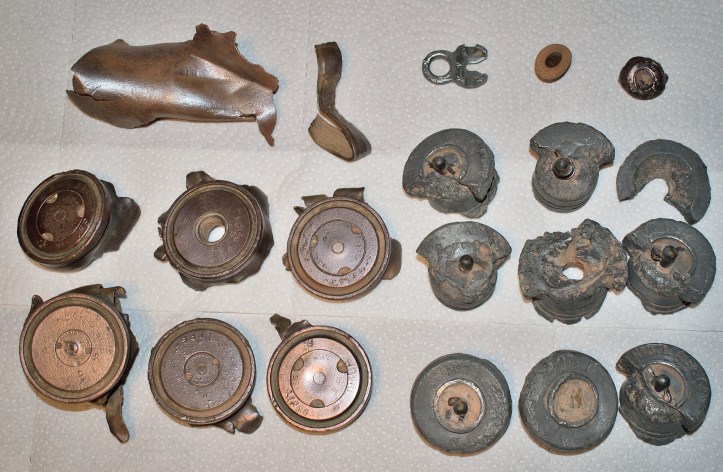

My finds from the dig after a bit of a scrub.
DSC_0857
No. 3 fuzes from British Mk V anti-tank mine
DSC_0856

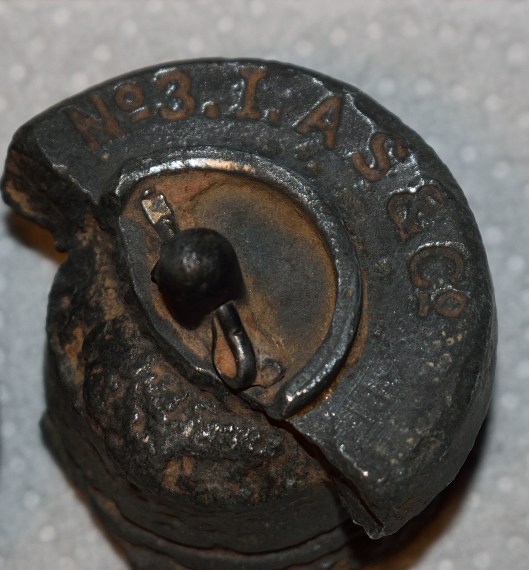

No 3 fuze markings
DSC_0854
No 3 fuze markings
DSC_0855
No 3 fuze markings
DSC_0859
Chunk of 40mm shell as well as a peice of drive band

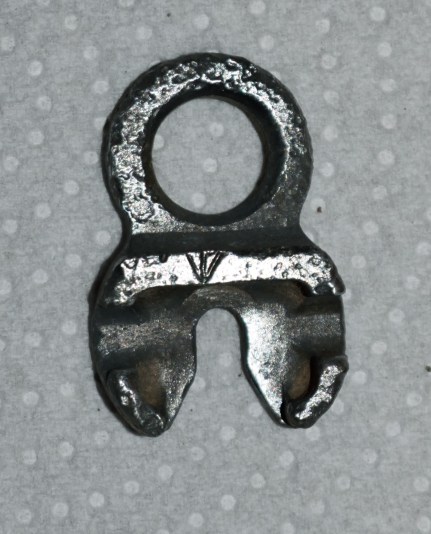

DSC_0860
Trip plate from a Mk 2 Shrapnel mine (many thanks to Alan for the prompt ID of this item)



a2f86100af2fcaf9d035569d1bba53e2
Diagram showing the trip plate, top right.
DSC_0862

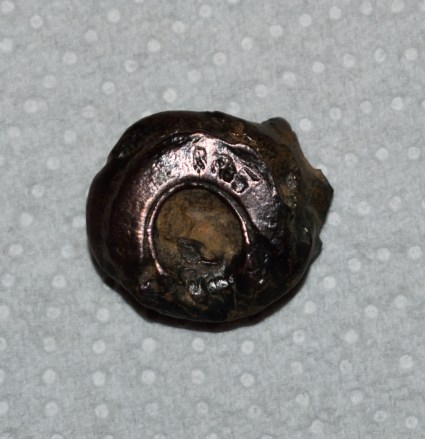

The very battered remains of a 20mm Oerlikon cartridge
DSC_0858
40mm shell bases. Looks like the demolition charge was placed just above the rim of the cartridge case, as we rarely find anything bigger than this
DSC_0863
Headstamp
DSC_0864
Headstamp
DSC_0865

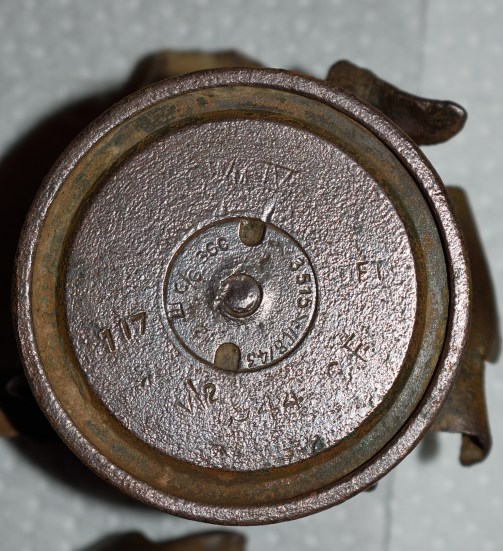

Headstamp
DSC_0866
Headstamp
DSC_0867

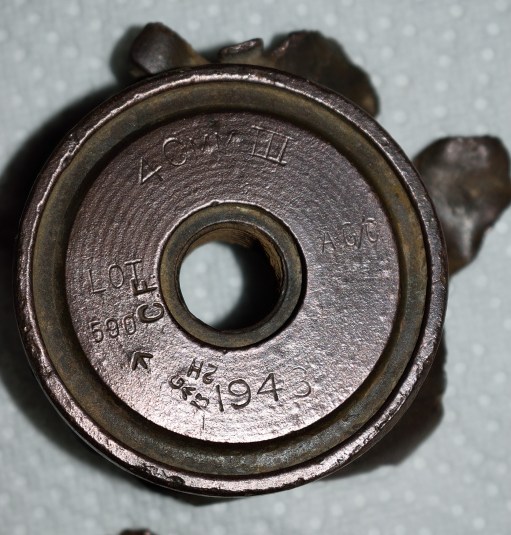

Headstamp
DSC_0868
Headstamp



Not a bad dig at all with plenty of finds. The piece from a Mk 2 shrapnel mine was a first for this site so it has added to the inventory of what was being disposed of.

I returned 6 days later, on my own this time, and had another good dig.

DSC_0869
Pre-cleaning
DSC_0871

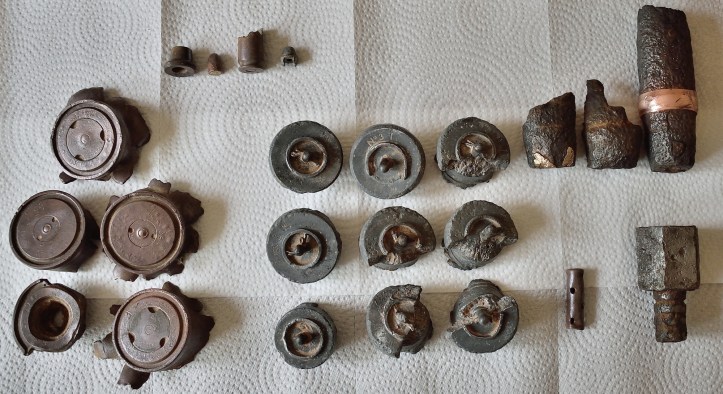

Post cleaning
DSC_0876
More No 3 fuzes

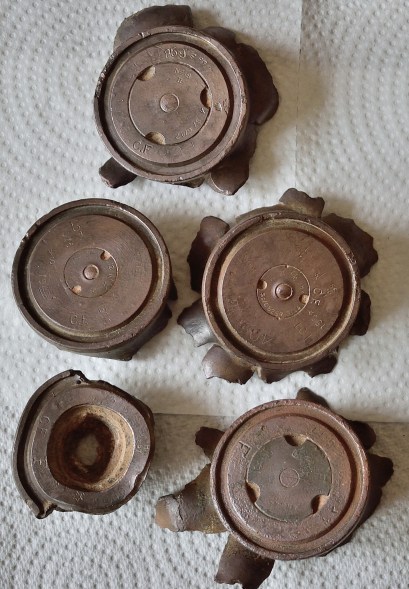

DSC_0872
More 40mm cartridge case bases

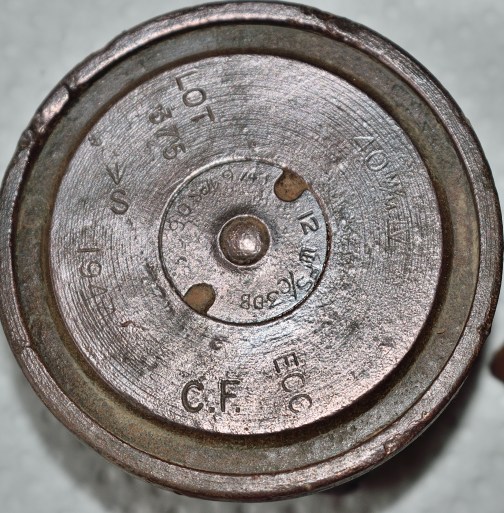

DSC_0873
Headstamp

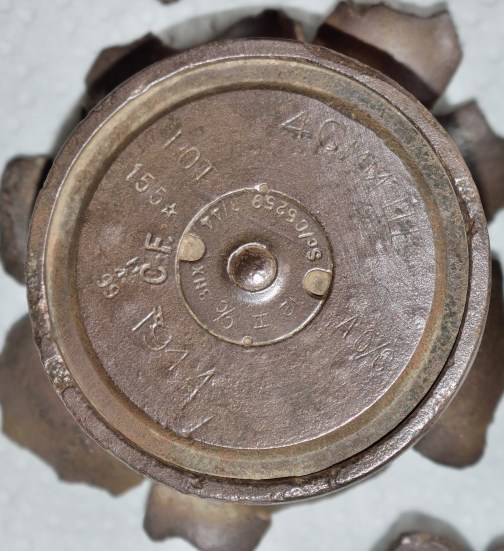

DSC_0874
Headstamp
DSC_0875
Headstamp
DSC_0878
40mm HE shells, or at least the remains of them. Look closely on the drive band and you can see a WD arrow and the number 33.
DSC_0880
Booster from a 40mm
DSC_0877
From left to right…..internal component from a fuze, 45cal bullet, .50cal cartridge case, percussion cap from inside a No. 36M grenade. This last item is a very unusual find and must have been removed from the grenade as it would not have survived the explosion if it was still in place inside the grenade.

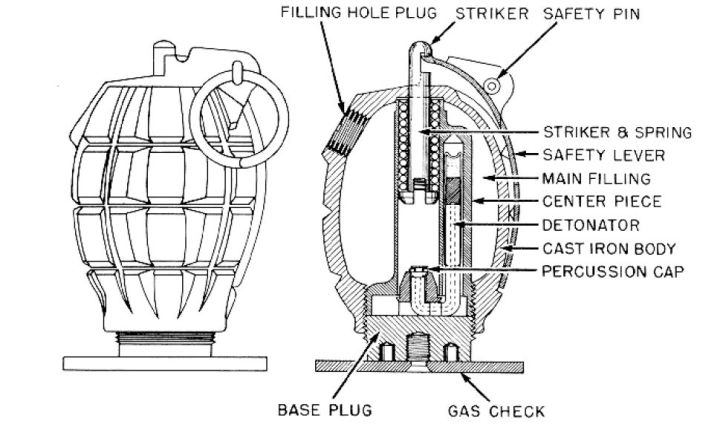

mills
Diagram showing the percussion cap at the bottom of the centre piece.

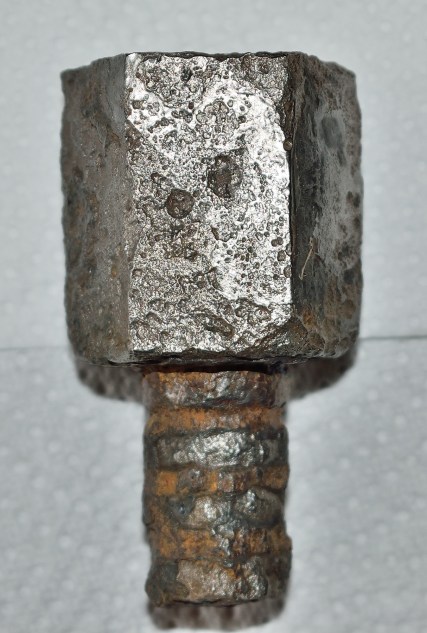

DSC_0881
Incendiary bomb tile breaker, British made (shown by the rings on the bottom portion)



These two digs have shown that there were No 2 shrapnel mines as well as possibly No 36M grenades also being disposed of at the site. The artillery shell protective caps were also a new find! The history keeps coming……
